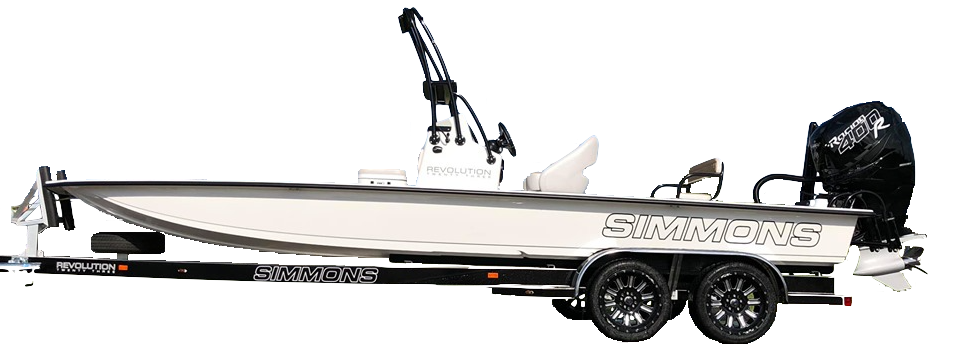

Build Your 2025 Custom Revolution 23


Hull Type:   Cat
Hull Weight:   1700 lbs
Length:   23’8"
Beam:   8’4”
Draft:   10”
Fuel Capacity:   80 Gallon
HP Rating:    Unlimited

REVOLUTION 23 Standard Equipment:

Revolution 23 Hull w/80gal fuel capacity
Center Console w/(8) rod holders, storage areas & grab handle
Carbon Fiber Dash Panels w/ Mini LED Push Button (8)
USB and 12v Accessory Plugs
LED Navigation/Anchor Lights
Insulated Livewell w/ Fill & Pro Air
SS Pull Up Cleats (5), SS Friction Hinges & Latches
Auto Bilge Pumps (2)
SeaDek in Storage Lockers
Rear Deck Rod Locker
Custom Bucket Seats w/ Sliding Bases on Aluminum Frame
Hydraulic Jackplate w/ Custom Gauge
Cranking Battery 34M
House Battery 31DM

Motor Options

Mercury Racing 450R SM 1.60
Mercury Racing 400R SM 1.75
Mercury Racing 300R SM 1.75
Mercury 400 Verado HD 1.75
Mercury 350 Verado HD 1.75
Mercury Racing 250R SM 1.75

Controls & Prop Options

Vessel View Link, Comm Module, Harness, J-Box, Steering, Race Control, HD Hub Kit
Prop - Bravo 1 FS (250-400hp)
Prop - Max5 ST (250-450hp) - required w/450R

Trailer Option

Coastline Tandem Axle - Simmons Welded w/Alu Fenders, Custom Wheels & Tires, Std Spare

Hull Options

80” Riser Box w/(4)Side Access Doors, Insulated Livewell & Seat Cushion
Mid-Tower & 80" Deck Box w/Large Top Hatch,(2)Side Access Doors, (1)Insulated Storage, (1) Insulated Live Well & Cushion
Wide Gunnel Extensions w/Rod Storage & LED Lighting

GPS Options

Simrad NSS16 evo3 w/ Total Scan Transducer
Simrad NSS12 evo3 w/ Total Scan Transducer
Simrad GO12 xse w/3-1 Transducer
Simrad GO9 xse w/3-1 Transducer
Satellite Chip - TX

Common Rigging Options

Shockwave S5 Suspension Bases
Power Pole Blade Anchors
WetSounds Audio Systems
Minn Kota Riptide Trolling Motors
Lithium Ion Batteries
Custom Fiberglass Color Match Coolers, Cushion & SS Strap kit
LED Light Strips in Storage Areas
LED Underwater Lighting
Wade Ladder w/Flip Up Step
Alumimum Frame Rear Bench Seat, Removable
SeaDek Kit-Cockpit, Front & Rear Decks - Standard Layout and Details
Powder Coated Boat Tubing (most colors)
Low/Med Burn Bar w/optional LED Light Bar
Tall Burn Bar w/optional LED Light Bar, SeaDek Step Up, Collapsable, Zip-Open Shade Top

Contact Us   for additional rigging options, pricing and orders

* Specs & Pricing Subject to Change Prior to Bulid.
